WHAT ARE SCAFFOLDING CASTORS?
Scaffolding castors are heavy-duty wheeled assemblies that mount at the base of scaffolding towers. They allow workers to reposition the entire structure quickly, safely, and effortlessly across all types of job-site surfaces.
Unlike standard industrial castors, scaffolding castors carry far greater responsibilities on-site. Specifically, they bear the combined weight of the scaffold frame, boards, tools, and workers simultaneously. Moreover, they include a robust locking system that instantly immobilises the platform the moment work begins at height.
In terms of construction, every scaffolding castor consists of three key elements working together: a top fitting that locks into the scaffold tube, a swivel head that delivers 360° rotation, and a wheel and fork assembly with an integrated braking mechanism.
Scaffolding castors are not just wheels — they are safety-critical components. At Muvtons, every castor goes through rigorous engineering to deliver maximum mobility without compromising structural integrity at height.
WHY SCAFFOLDING CASTORS ARE ESSENTIAL IN CONSTRUCTION
Modern construction and maintenance projects demand speed and agility above all else. Fixed scaffolding towers force workers to disassemble and reassemble the entire structure every time the team moves position — a costly, time-consuming process. As a result, top contractors worldwide now choose mobile scaffolding with high-quality castors to eliminate that inefficiency entirely.
● Productivity at Every Level
Workers can reposition a fully assembled scaffold tower in minutes rather than hours. On large-scale projects — warehouses, airports, or stadium construction — this advantage saves days of labour costs over the full project timeline. Furthermore, teams stay focused on the actual work instead of constantly rebuilding their platform.
● Safety Is Non-Negotiable
Choosing the right scaffolding castor directly determines the difference between a secure platform and a serious accident. Castors that meet BS EN 1004:2020 deliver documented proof of load and brake performance — so contractors protect workers while satisfying regulatory requirements at the same time.
● Floor Surface Compatibility
Construction sites feature diverse surfaces — polished concrete, asphalt, rough warehouse floors, or even outdoor terrain. Selecting the correct wheel material ensures that the castor rolls smoothly, doesn’t damage sensitive floors, and maintains grip under load.
KEY BENEFITS OF MUVTONS SCAFFOLDING CASTORS
Every Muvtons scaffolding castor delivers a clear competitive edge on-site. Through a combination of structural strength, precision manufacturing, and intelligent design, these castors outperform generic alternatives in every critical area.
Forged Swivel Head
Muvtons forges the kingpin integrally into the swivel head — a method that delivers far superior tensile strength compared to welded alternatives. Additionally, the slotted nut arrangement lets workers fine-tune the height quickly to level the scaffold on uneven surfaces.
Totally Sealed Bearings
The dual ball raceways run fully sealed with a grease nipple, so the castor delivers long, reliable service life even in dusty, wet, or harsh outdoor environments. As a result, maintenance teams spend less time servicing the castors and more time on productive work.
Robotically Welded Forks
Muvtons forms fork legs to 5mm thickness and then robotically welds them for consistent, high-strength joints every time. Consequently, the fork assembly handles the dynamic shock loads that construction environments routinely produce without any structural compromise.
Multiple Fitting Options
Plug type, socket type, and locking cup fittings cover virtually every scaffold tube standard in use globally — from European to Asian specifications. Therefore, procurement teams can standardise on Muvtons castors across all their projects without compatibility concerns.
RoHS Compliant Finishes
Muvtons offers both RoHS-compliant zinc plating and black powder coat finish. Both options deliver strong corrosion resistance and meet environmental regulations — making them ideal for projects with strict sustainability requirements or EU-governed contracts.
Certified to Latest Standards
Independent test laboratories have certified Muvtons scaffolding castors to both BS EN 1004:2020 and DIN EN 1004. This means project managers and safety officers receive full compliance documentation directly for their safety files.
AVAILABLE WHEEL MATERIAL
The wheel material is one of the most important specifications when selecting a scaffolding castor. It determines load capacity, floor surface compatibility, noise level, and service life.

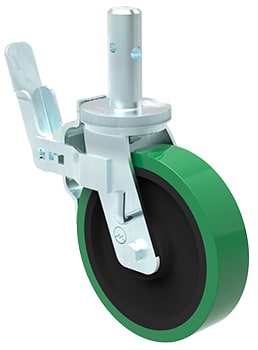

SAS- Premium Polyurethane
Muvtons engineers this top-grade PU compound specifically for demanding environments. It delivers superior abrasion resistance, excellent load distribution, and a softer ride that actively reduces vibration throughout the scaffold structure above.

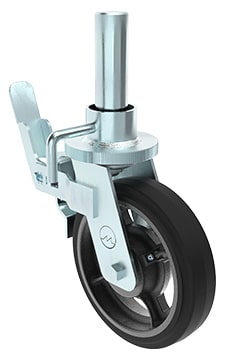

MOR- Rubber on Spoke Rim
This option mounts a rubber tyre on a spoked cast iron rim, so the wheel carries full rubber-tyre performance while looking visually lighter. The reduced unsprung mass also makes pushing lighter scaffolding towers noticeably easier for one-person operation.

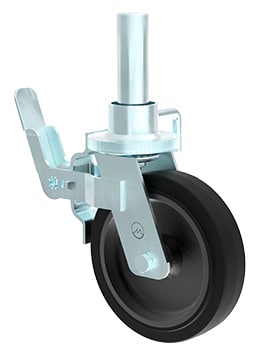

SB- Rubber on Cast Iron
Muvtons bonds a rubber tyre directly onto a cast iron core to combine the best of both materials. The result is a wheel that dampens vibration effectively and grips smooth surfaces confidently — a smart choice when both strength and floor sensitivity matter equally.

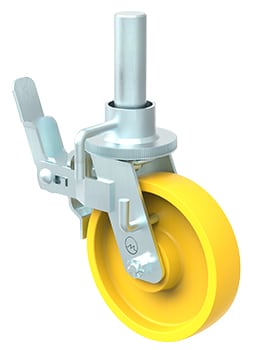

NY- Nylon
Nylon stands as the go-to choice for rough outdoor surfaces, construction site roads, and uneven terrain. It resists moisture effectively, wears extremely slowly, and carries the full 820 kg static load on both 6″ and 8″ wheel sizes with ease.
LOCKING MACHANISMS FOR MAXIMUM STABILITY
When workers operate at height, the scaffold platform must stay absolutely stationary. Muvtons therefore builds four distinct locking configurations into its scaffolding castor range — so every operational scenario has a precise, reliable solution.

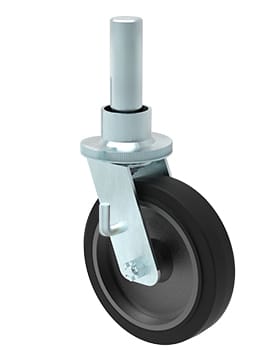

Wheel Lock
Workers operate this simple hand-activated parking lock directly by hand, and it immediately stops the wheel from rolling. This option suits standard work platforms on level ground where swivel locking is not necessary. The straightforward single-function design also minimises the chance of operator error.
Swivel & Wheel Lock (TL)
One press of the foot pedal simultaneously locks both the wheel and the swivel head. This stops the castor from both rolling and pivoting in a single action. As a result, this Total Lock configuration delivers the highest level of platform immobilisation available. Always add suffix TL to the catalogue reference when specifying.

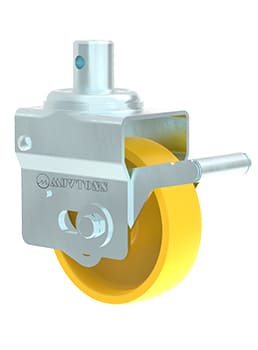

Single Pedal Brake (SCFSP)
The Zero Offset SCFSP series features a compact, low-profile pedal that workers activate with a single foot motion. It delivers positive wheel lock instantly, and the colour-coded design lets operators confirm the locked state at a glance — even from a distance on a busy site.

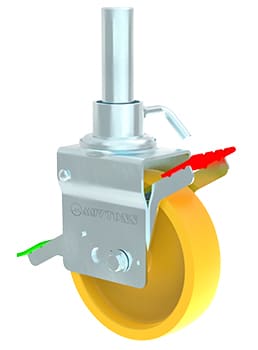

Double Ended Pedal (SCFDP)
The SCFDP series solves a persistent worksite challenge — operators can activate this colour-coded total lock pedal from either side of the scaffold tube. This matters significantly in confined spaces or when a wall or adjacent structure blocks access to one side of the castor.
APPLICATIONS OF SCAFFOLDING CASTORS
Muvtons scaffolding castors support a broad spectrum of industries. Wherever teams need a mobile elevated work platform, these castors deliver the load capacity, reliability, and locking performance the job demands.
Building Construction
Teams use these castors for exterior and interior access work — from painting and plastering to full MEP installation on multi-storey buildings.
Industrial Maintenance
Factories, power plants, and chemical facilities rely on mobile platforms that repositioning teams can move quickly to keep plant uptime as high as possible.
Aviation & Aerospace
MRO teams in aircraft hangars manoeuvre platforms precisely around fuselages and wings — a task that demands exact control and instant locking at every stop.
Shipbuilding
Dock and shipyard crews operate on metal surfaces in humid, corrosive conditions. These castors handle those challenges and continue performing reliably throughout the build.
Infrastructure Projects
Schools, hospitals, and government facilities running renovation programmes demand strict floor protection alongside reliable height-access solutions — and Muvtons delivers both.
Events & Stage
Event production teams reposition elevated lighting and production rigs safely and quickly between set changes — with full confidence that each platform locks solid when in use.
WHY CHOOSE MUVTONS SCAFFOLDING CASTORS
The market offers many generic castor options, but Muvtons consistently stands apart. Through precision engineering, independently verified performance, and a genuine commitment to customer outcomes, Muvtons delivers results that generic suppliers simply cannot match.
Engineering Excellence
Muvtons designs every scaffolding castor with precision — from swivel head geometry down to fork wall thickness. Each element serves a specific purpose. Therefore, buyers receive a product purpose-built for scaffolding, not an adapted general industrial component.
Independent Certification
Accredited third-party laboratories test Muvtons castors against BS EN 1004:2020 and DIN EN 1004. Furthermore, Muvtons makes the full test reports available on request — so procurement teams and safety managers get the documentation they need without chasing it.
Global Presence
Muvtons ships products to over 70 countries worldwide. Consequently, global construction supply chains can rely on consistent quality and readily available stock for large project orders, regardless of location.
Comprehensive Range
Two castor series, six wheel materials, three fitting types, two finishes, and four locking configurations — all from a single supplier. This breadth means project engineers specify exactly what each application needs rather than settling for the nearest available alternative.
RoHS Environmental Compliance
Every zinc-plated finish Muvtons produces meets RoHS compliance standards. As a result, contractors working on EU-governed infrastructure projects or any contract with strict hazardous substance restrictions can specify Muvtons castors with complete confidence.
Expert Technical Support
The Muvtons technical team provides product selection guidance, load analysis, and custom configuration support at every stage of specification. In short, buyers get the right castor for their application correctly the first time — avoiding costly specification errors later.
BS EN 1004:2020 CERTIFICATION
Certification to BS EN 1004:2020 goes far beyond a simple badge. It represents quantified, documented proof of performance under standardised test conditions — giving contractors, safety managers, and project owners the legal and regulatory protection they need on every construction project.
What the Standard Requires
Static Load Test: Verified at 8.33 kN (850 kg) — zero deformation under maximum load.
Brake Performance: Locking system holds the scaffold firm against all specified horizontal forces.
Structural Integrity: Fork legs, swivel head, and fittings tested across the full load range.
Marking Requirements: Compliant products carry traceable standard reference and load capacity markings.
DIN EN 1004 — Also certified to the German national standard for EU project compliance.

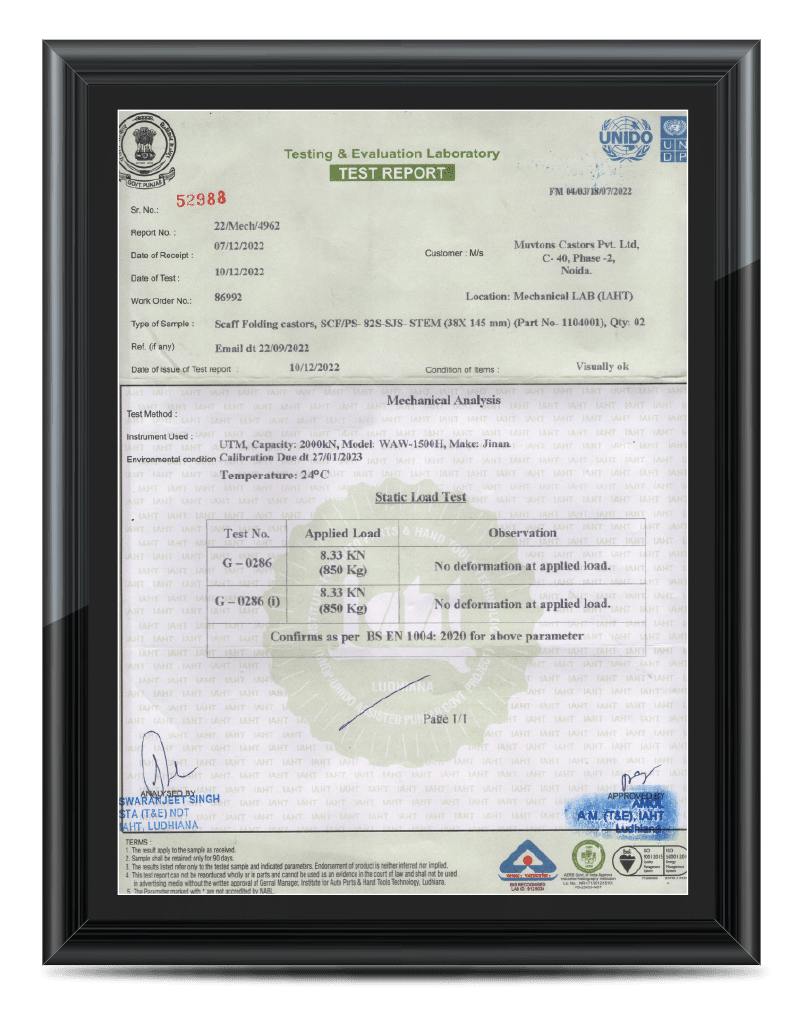

Test conducted at: Conducted at an NABL-accredited Mechanical Testing & Evaluation Laboratory.
• Model tested: SCTPS-825-SJS-STEM (ØX 145mm) — production-identical unit, no deviations.
Muvtons’ test reports confirm: no deformation at applied load — the highest possible pass result under BS EN 1004:2020 static load testing protocol.
READY TO SPECIFY MUVTONS CASTORS?
Contact our technical team for product selection, custom configurations, bulk pricing, and full test documentation. We supply globally from our Noida facility.
